VERTICAL PROTECTOR MODEL ZK-X

Corner compound by aluminum and Zikonyl, designed for shock absorption, its design also makes it very robust model. The aluminum will be fixed to the wall face by taco and lag screw or neutral silicone. Also in the Zikonyl ®, the face side is textured, thanks to this feature we hide scratches that may occur.

In this photo you can see the vertical protection model ZK-X, and the horizontal protector ZK-H.

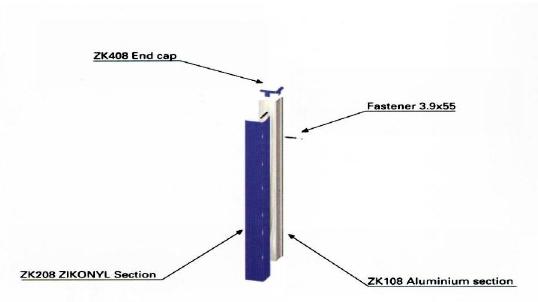

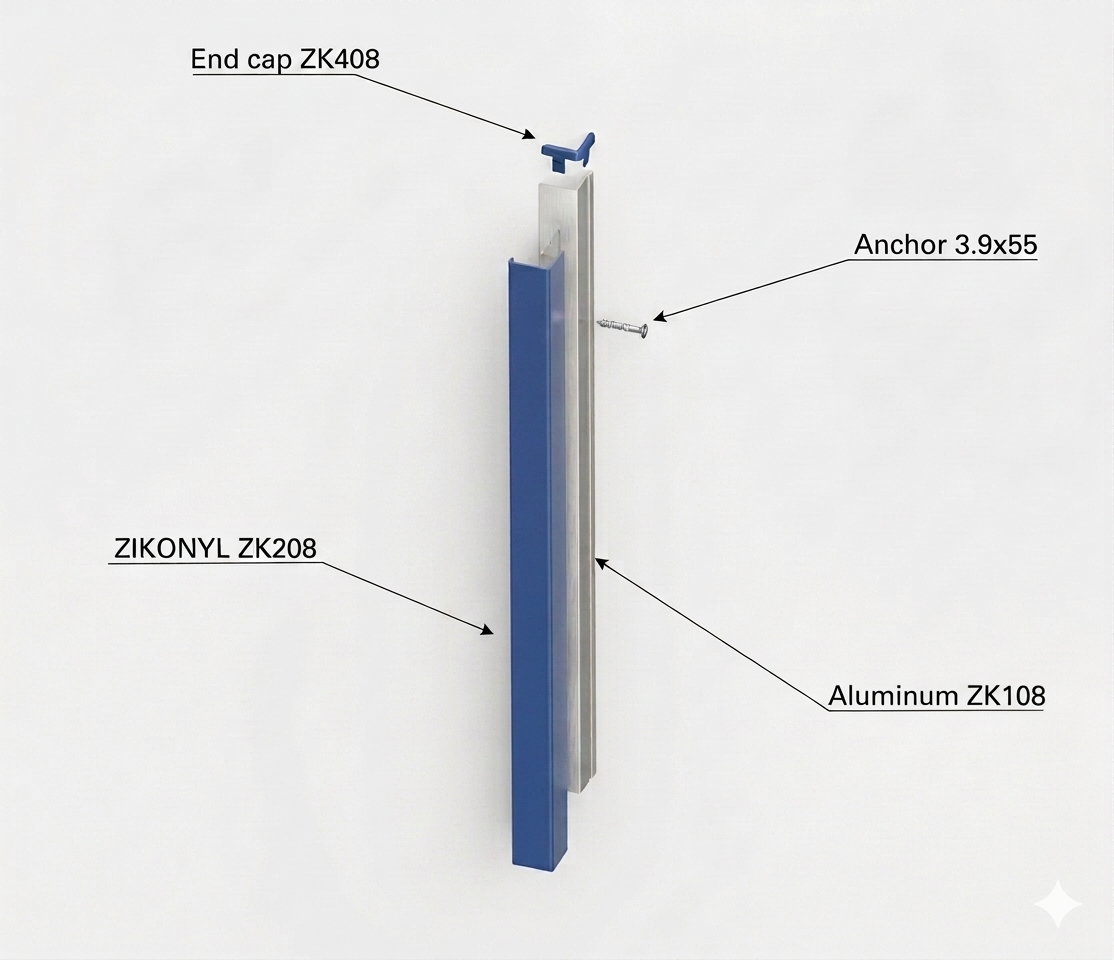

Below you can find the cutting model: ZK-X

Preparation

The walls into which the section is to be mounted should be finished and painted.

Mounting

Cut and drill the aluminium sections depending on the measurements needed. Allow for a space of approximately 400 to 600mm. Between fasteners. Be careful to ensure fixing points are never opposite each other, as this could weaken the wall. Cut the Zikonyl secton 2mm. longer than the aluminium section. If the wall has a skisting board, only mount the top end cap. If there is no skirting board mount both the top and bottom end caps to ensure the Zikonyl section cannot slide down. Mount the end caps onto the aluminium section before fixing the aluminium section onto the wall. Finally, mount the Zikonyl plastic section onto the aluminium section. The minimum installation measure of ZK-X model is 40mm.

About the colors availables of the ZK-X model, you can see in the next Link: COLOURS

Catalog
